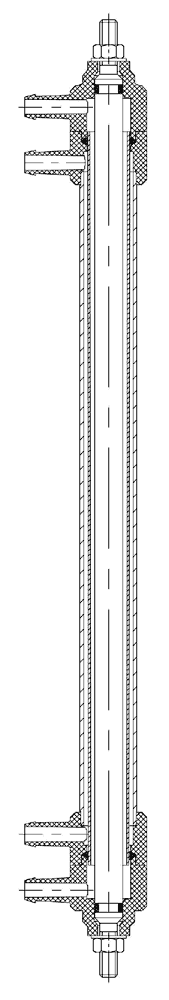

FEM-3 Flow-Through Electrochemical Module Cell
 |
|
FEM-3 cell, 1994
|
A device to electrochemically treat water
RF Patent # 2078737. Claimed on 26.05.1994, published on 10.05.97. Authors:
V. M.Bakhir, Yu. G. Zadorozhny.
Flow-through electrochemical module reactor - FEM-3 module. FEM-3 module, in
spite of its similarity to FEM-2 module in the principle of its application
in electro-chemical systems, technically has an absolutely new design, and essentially
differs from its prototype - FEM-2 module. FEM-3 module, unlike FEM-2 and FEM-1
modules, is devoid of problems arising in connection with the presence of bi-polar
areas on the sur-face of external electrode, and it surpasses FEM-1 and FEM-2
modules in its mechanic, hydraulic and electrochemical reliability and durability.
FEM-3 modules can be used to implement any technological processes developed
for FEM-1 and FEM-2 modules. Simultaneously, engineering and economic parameters
of these processes become better. However, FEM-1 and FEM-2 modules cannot be
used in process flowsheets developed with regard to FEM-3 modules either due
to reasons making such re-placement technically and technologically impossible,
or because engineering and economic parameters of processes carried out using
FEM-1 or FEM-2 modules, ap-pear worse than if FEM-3 modules are employed.
The practice of FEM-3 module operation suggests that it is from the moment
of developing a reliable, versatile and easy-to-use electrochemical reactor
that tech-nology of electrochemical activation in particular, and technology
of "individual" applied electrochemistry in general, originate.
 |
|

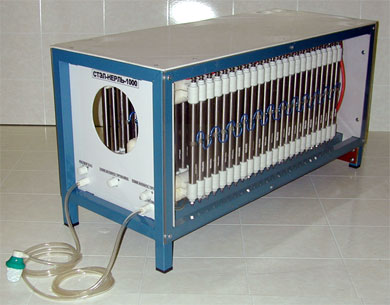

Electrochemical unit of STEL- Nerl device.
STEL- Nerl device for producing anolyte with рН below 4 and
catholyte with рН above 12 from formation water for oil and gas production
facilities. Electrochemical reactor consists of 96 FEM-3 modules. Output
- 1000 l/h of anolyte and 1000 l/h of catholyte. Consumed power - 6000
W. Moscow, VNIIIMT, 2002.
|
